Software for Routing HVAC Ducts from Standard Catalogs

The HVAC module ducting design in M4 PLANT is an integrated solution for creating heating, air-conditioning and ventilation systems in a plant or factory design. Its extensive functionality permits the fast and simple creation of complete HVAC systems directly in 3D. The software contains a wide range of catalogues, including ducts, transition pieces, valves, fans and many other air-conditioning components.

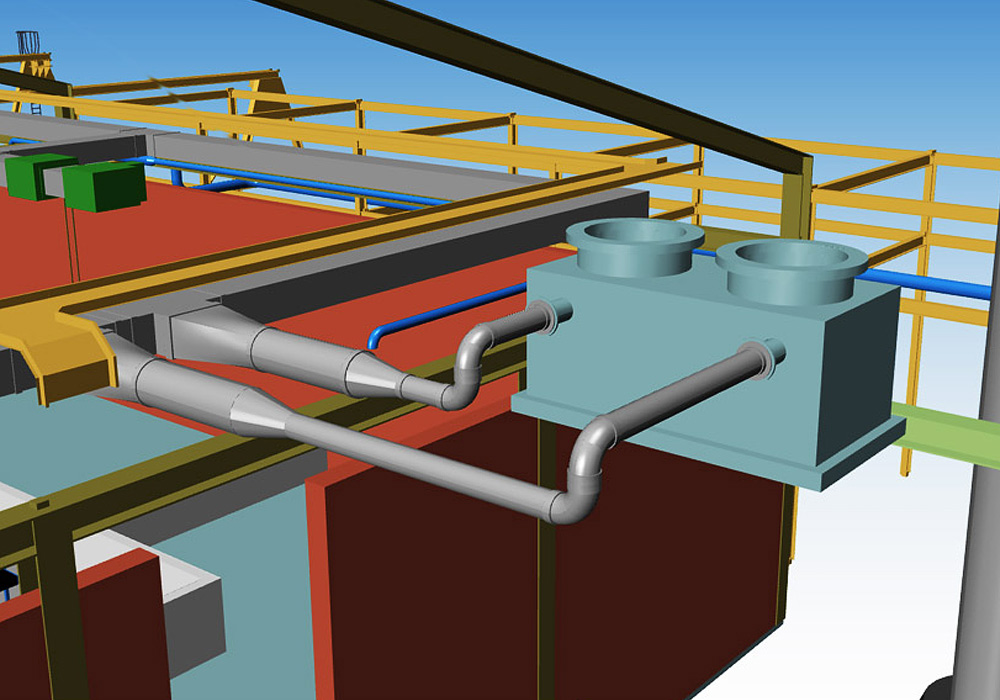

MPDS4-3D-Klimatechnik-Software

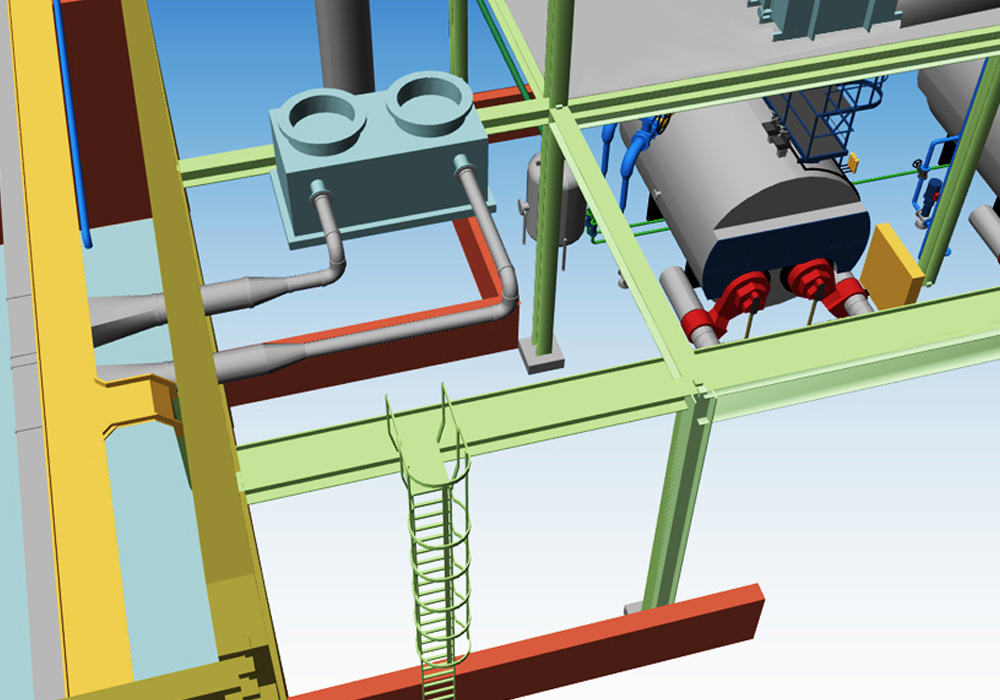

MPDS4-3D-Klimatechnik-3D

Comprehensive quality control and extensive catalogues

This air-conditioning software in M4 PLANT allows you to check the design consistency of entire HVAC systems or selected sections. The catalogues contain an extensive range of air-conditioning components and also allow you to create custom components. Moreover, detailed parts lists, including connection data and material information can be exported for the entire 3D project or individual sections, for instance for notifying a supplier.
