Standard CAD parts minimise the effort in engineering design. A great number of standard CAD parts for machine, pipework and steel construction design are already included in M4 DRAFTING.
CAD standardised-part library for even faster design

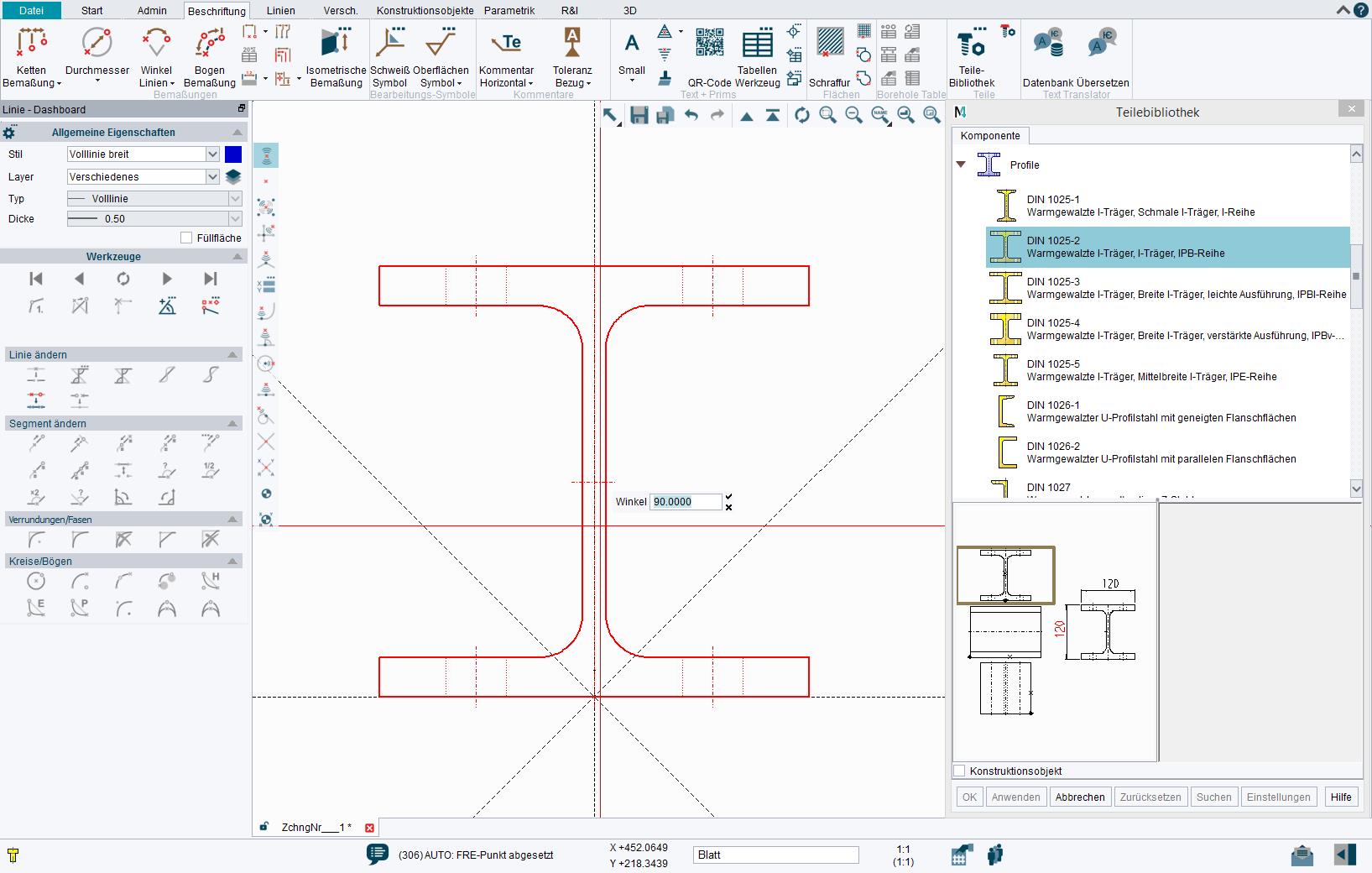

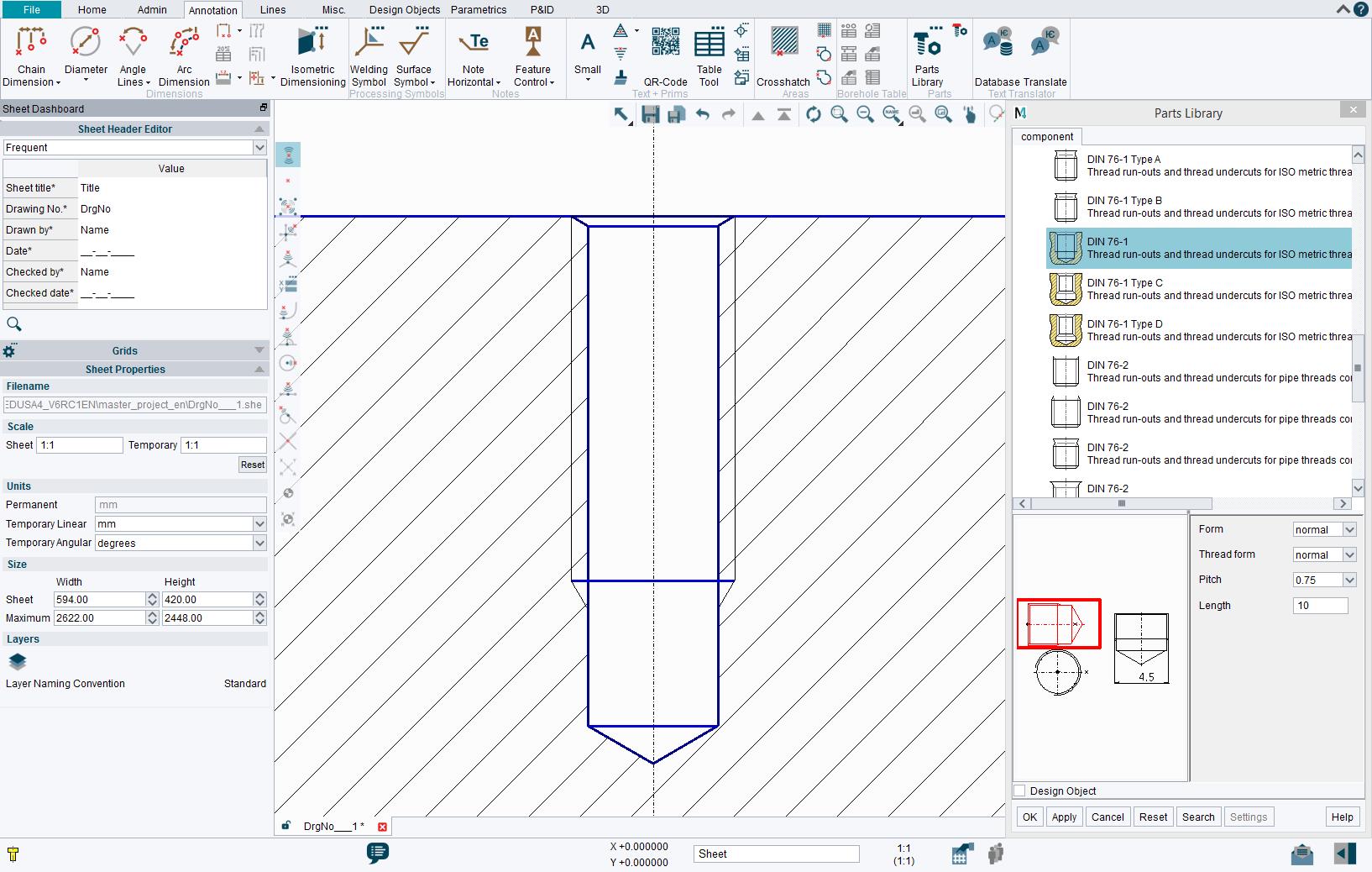

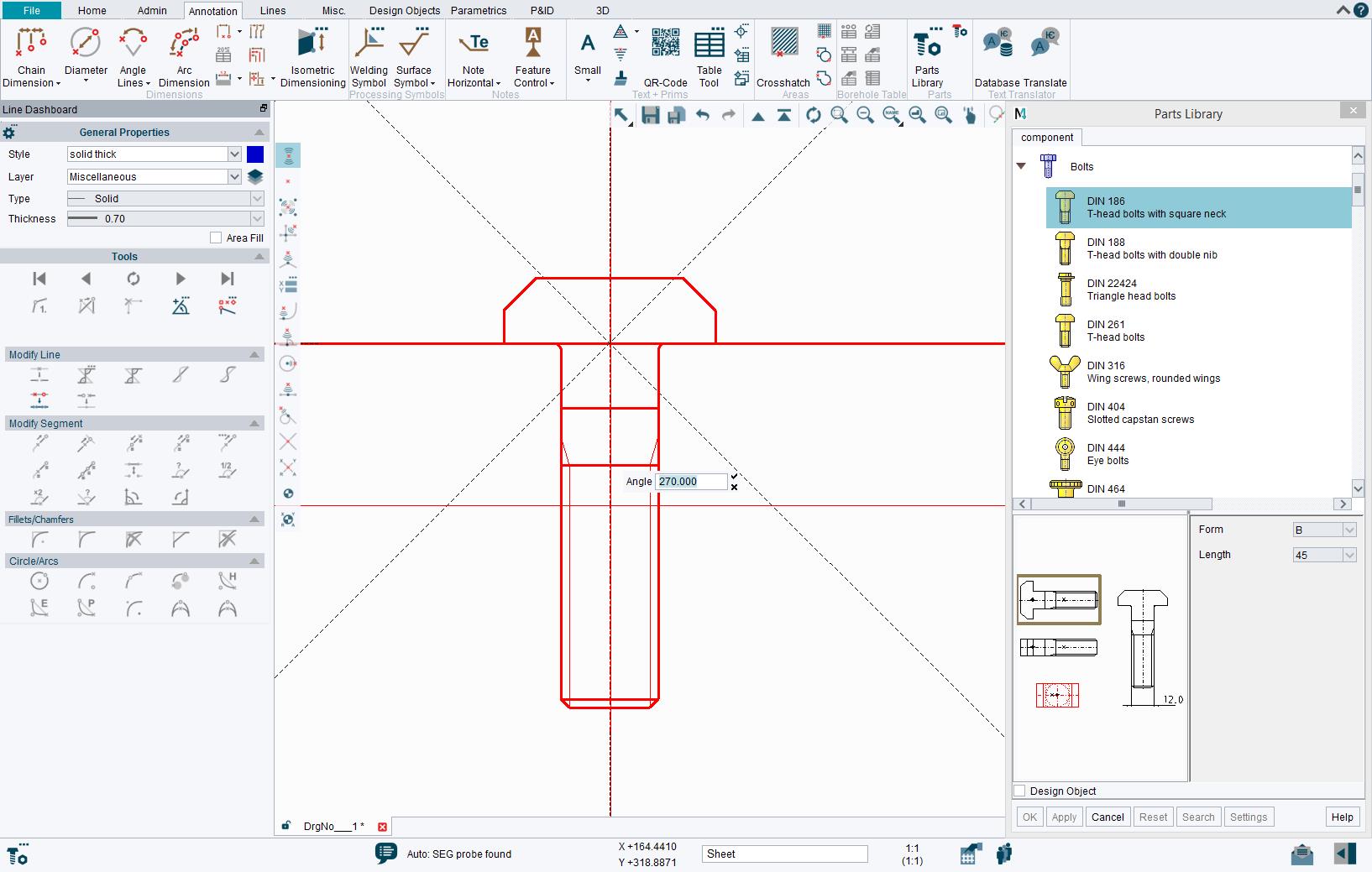

The MEDParts module is an integrated CAD standardised-part library and offers a great number of standardised parts for machine, pipework and steel construction design. The library offers a great number of standards from the sectors involving bolts, nuts, washers, pins, roller bearings, countersinking, bores, screw threads, free penetrations, securing elements, flanges, seals, pipe parts, steel profiles and many more standard components.
Dynamic placement and adaptation

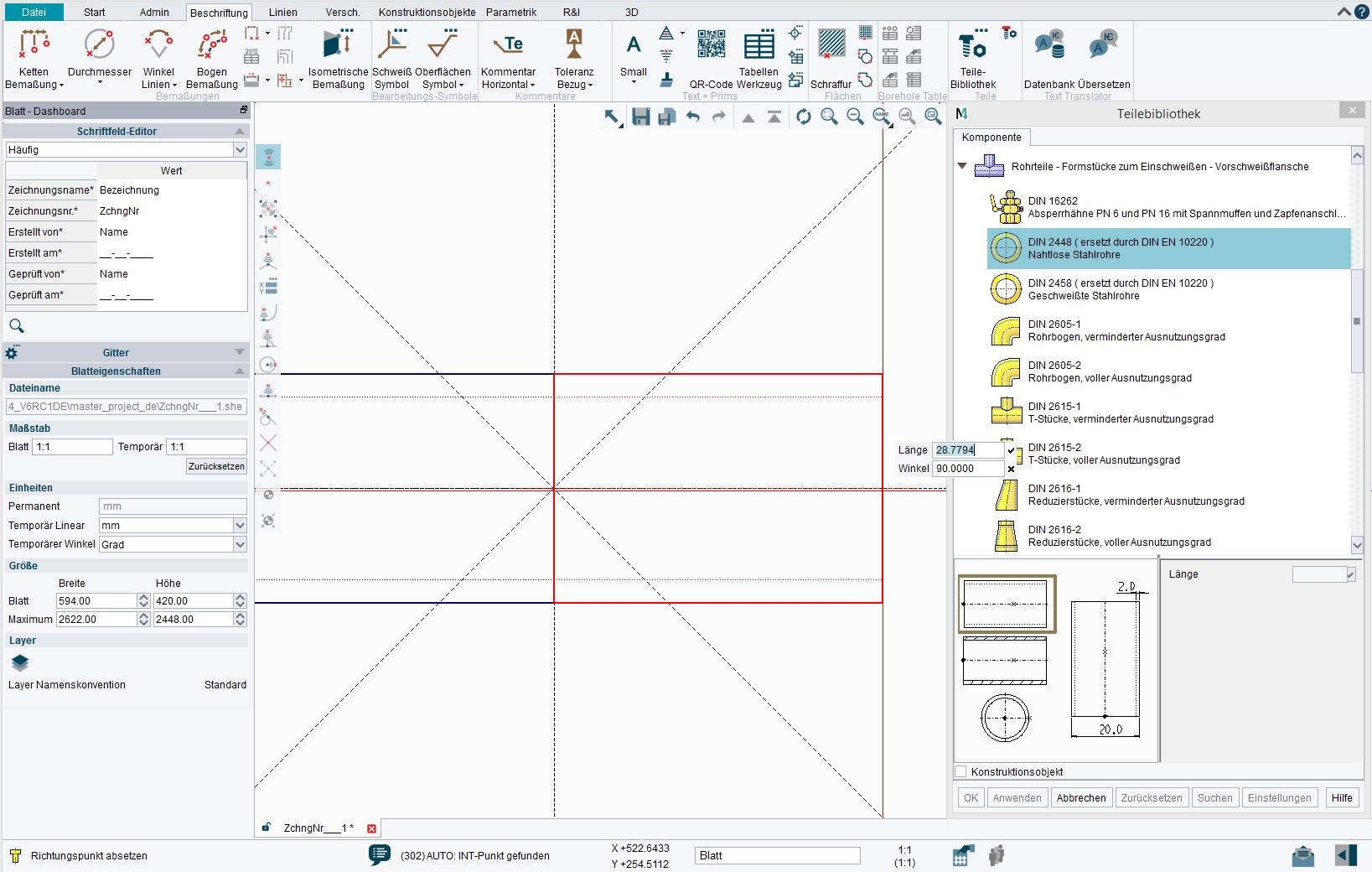

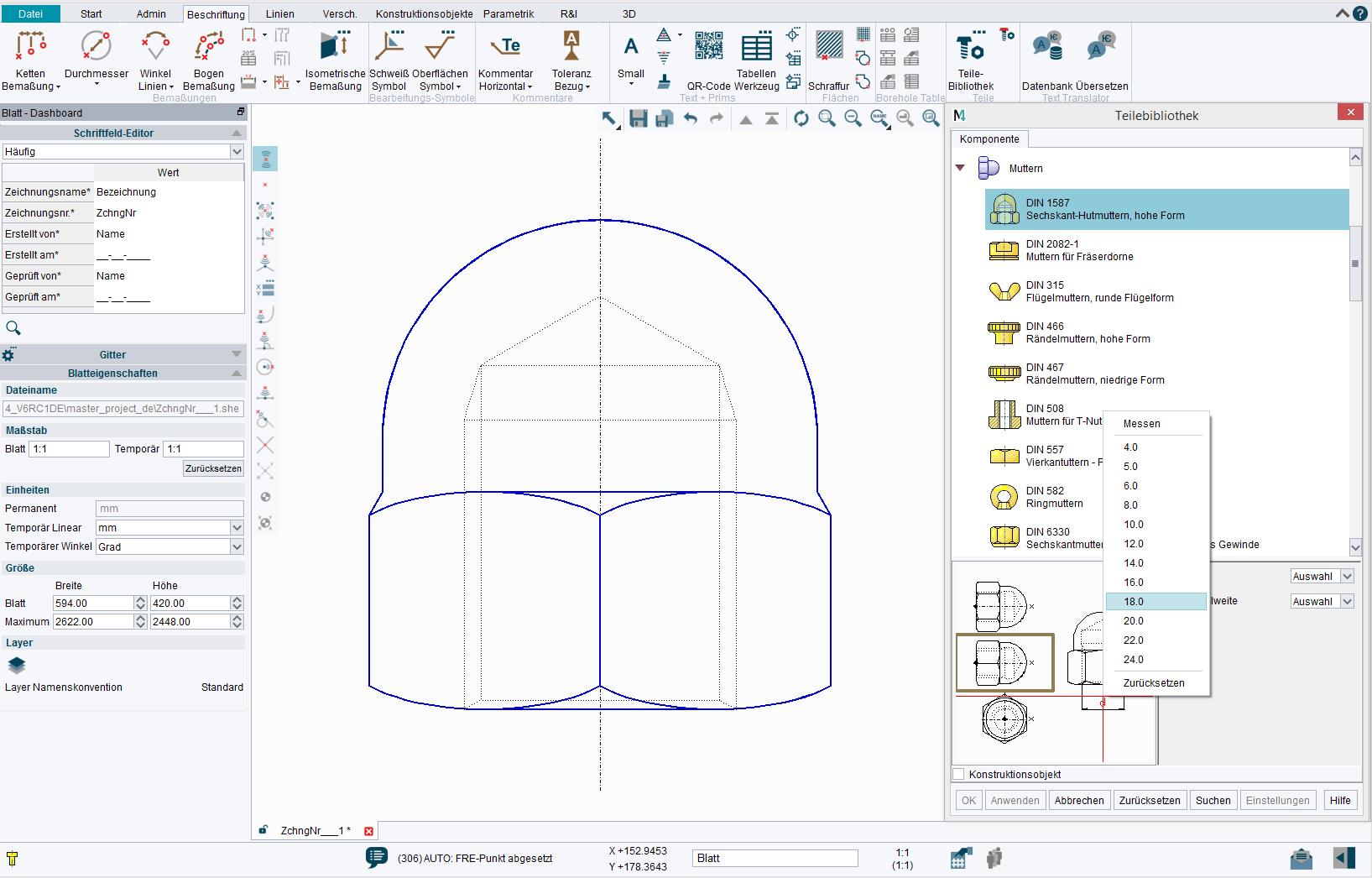

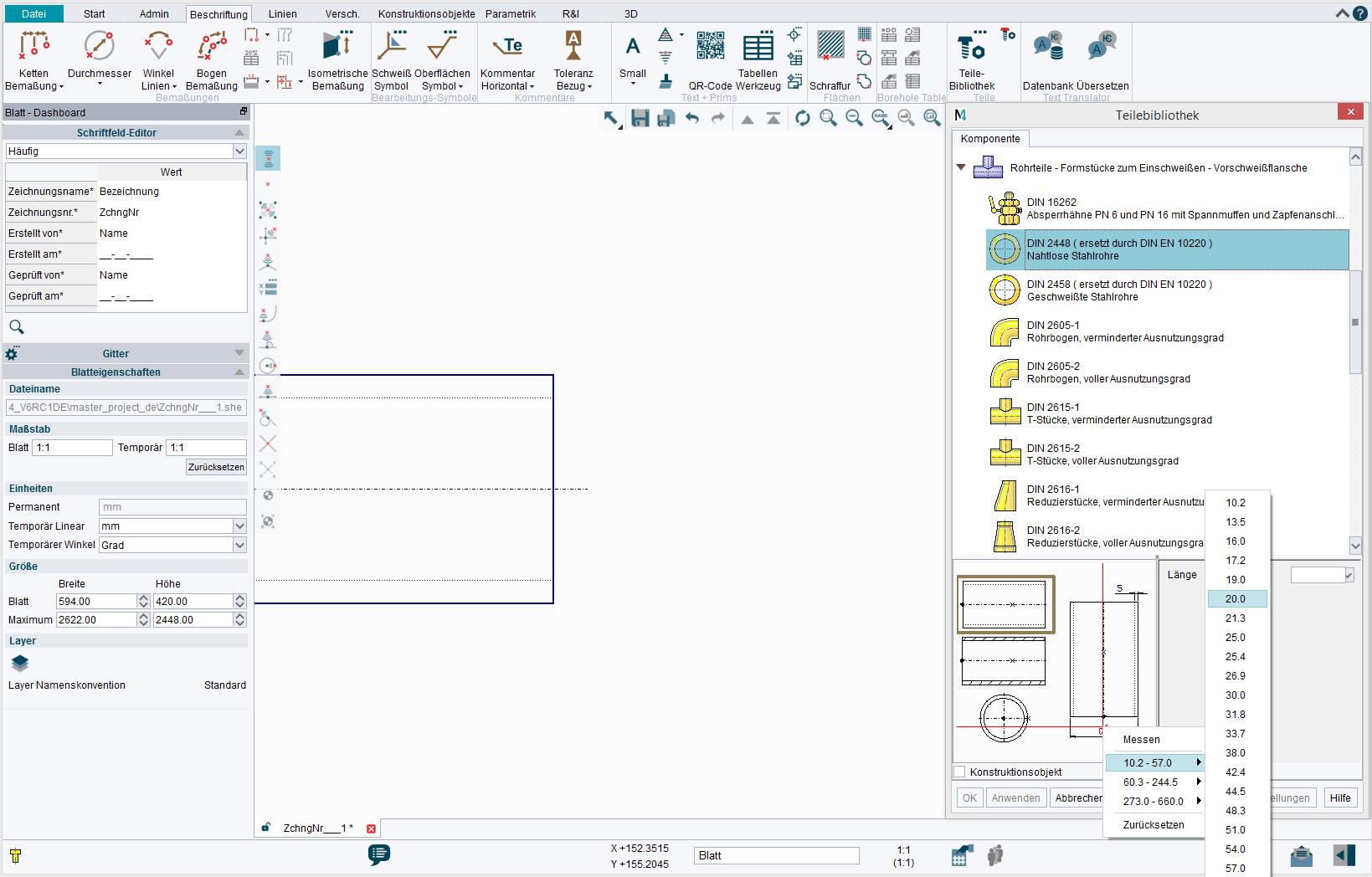

Individual CAD standardised parts can be simply selected with MEDParts over the intuitive user interface. The matching dimensions can be selected by menu or determined automatically by the selection of the target geometry. The software then automatically offers the nearest matching component. When placing a component, it can be decided therefore simply integrated into an existing group. In this way, the group structure of a drawing is preserved and thus the loaded-in CAD standardised part is unambiguously allocated to a component part.
Standard Descriptions
MEDParts come with their own text attribute containing the complete standard description, which can also be used for the automatic creation of parts lists.
Search and Replace
Use MEDParts’ search and replace functionality to quickly identify and replace parts on your sheet.
