M4 PLANT

Industrial Plant Design and Factory Layout Software

The MPDS4 plant design system is a database-driven suite of powerful, multi-user plant engineering applications, providing the complete solution for every plant design or factory layout challenge.

M4 DRAFTING

2D/3D Mechanical CAD

Advanced mechanical design software, ideal for manufacturers and designers of custom equipment, machinery or assemblies.

M4 PERSONAL

2D/3D CAD Package

Introducing all the functionality of the professional MEDUSA4 software free for personal use. The product allows you to import but not export data, and sheets are clearly marked “Not for Commercial Use”.

M4 P&ID

P&ID Software

M4 P&ID FX is a standalone system for creating intelligent piping and instrumentation diagrams (P&IDs). The powerful P&ID software represents excellent value for those not requiring integration with 3D piping or large-scale industrial plant design software.

CSG DWG & DXF Converter

Convert DXF to DWG | DWG to DXF

The CAD Schroer CsgDwgDxfConverter is a free, handy tool for converting DWG to DXF files and DXF files to DWG files, ensuring you deliver the right format to clients, partners and colleagues.

CSG Thumbnail

Thumbnail View of Sheets in Explorer

You can now easily recognize your MEDUSA4, STHENO/PRO or M4 P&ID FX drawings while you browse your files in Windows® Explorer. With CSG Thumbnail you can see medium, large or extra large thumbnails of your designs.

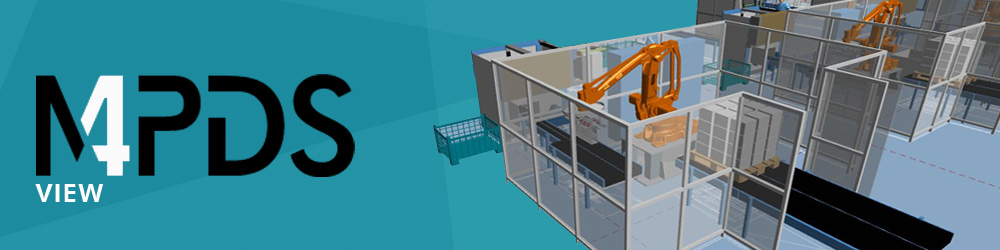

M4 REVIEW

3D viewer for plant or factory models

M4 REVIEW is independent 3D viewer that can be used for interactively visualising extensive 3D models. Entire plant or factory models can be saved in a highly compact format; they can then be e-mailed to customers requiring daily design inspections.
