Piping isometric software for PCF files

Export PCF files from your piping design system and use them with M4 ISO FX to automatically generate piping isometric drawings.

Or contact our consultants:
+44 1223 850 942 or E-Mail

Piping isometric software for PCF files

Export PCF files from your piping design system and use them with M4 ISO FX to automatically generate piping isometric drawings.

Request M4 ISO FX trial version

Or contact our consultants:
+44 1223 850 942 or E-Mail

M4 ISO FX is a complete solution for the generation and editing of piping isometrics. The standalone software offers the possibility to convert PCF files fully automatically into unscaled piping isometrics. In addition to the fully dimensioned and annotated piping isometrics, production-ready parts lists, pipe cut-length lists, weld and bend tables, are also generated at the same time.

Advantages for your company

Automation

M4 ISO FX works completely automatically enabling you to generate piping isometrics in a few seconds without manual effort.

Accurate manufacturing

All isometrics and parts lists are generated ready for production and styled to suit your processes. Bend data can also be output for NC pipe bending machines.

Standardisation

Support for Metric and Imperial units and all common dimensioning standards. Drawing styles and templates are also customisable.

We support you

Our team supports you as a partner and offers you a comprehensive service with a hotline for your daily questions.

  • Automated piping isometrics
  • Configurable detailed dimensions
  • Unscaled & unambiguous
  • Customisable templates & styles
  • Detailed parts lists
  • Parts lists as tables & files
  • Bend tables and welding lists
  • Extendable with design notes

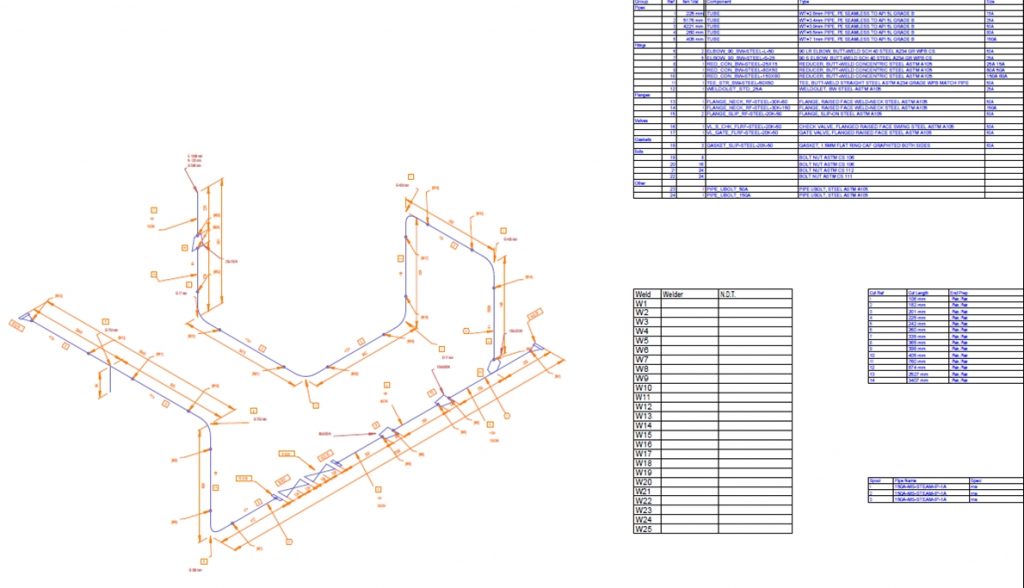

Piping ISOs automatically generated in seconds

The piping ISOs and supporting documents are generated by M4 ISO FX in seconds, ready for production use, and styled to suit company drawing standards. The automatic production of piping ISOs offers tremendous advantages over manually drawn 2D or isometric drawings, which in comparison are time-consuming to produce, highly prone to human error, and therefore inferior and much more expensive. With M4 ISO, project costs are always under control, even if the design undergoes numerous revisions before manufacture.

M4 ISO FX Piping Isometric Software

M4 ISO FX Functionality

Unscaled

Dimensioning

Labelling

3D view

Bending tables

Breaks

Welding lists

Pipe Positions

Elevations and falls

Customisable symbols

Style templates

Accurate parts lists

Or contact our consultants:
+44 1223 850 942 or E-Mail

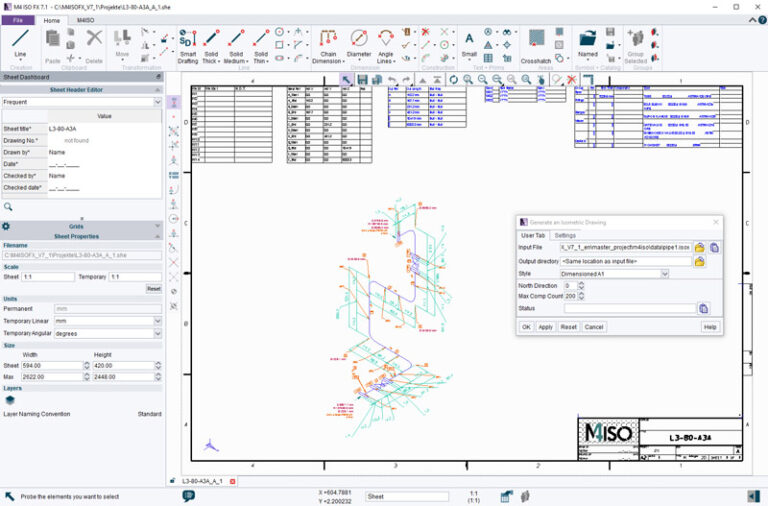

Greater flexibility through CAD functionality

M4 ISO FX is a standalone system for automatically generating piping ISOs from PCF files, and also offers basic 2D drafting functionality. This not only enables piping ISOs to be further detailed, but also to import and edit complete 2D CAD drawings. This means that piping ISOs can be supplemented with texts, notes, 2D details and other drawing elements. The DWG/DXF import and export capability allows seamless integration with other CAD systems.

Get started with M4 ISO FX now

  • More security through comprehensive consulting and software testing

    Apply for your trial license or contact our consultants. With our tutorials and online support you can easily try out the software. Our staff will advise and help you select the best package for your requirements.

  • Start quickly with on-site workshops and training courses

    In addition to standard training courses, we also offer on-site workshops, which enable you to receive tailored training while working on your first project. This guarantees you the fastest possible start into the productive use of the software.

  • Continuously productive and always up-to-date

    Our software maintenance includes extensive support including telephone support, all software updates and access to our customer portal. This enables us to effectively support you throughout your day.

Start your free trial now or contact us for advice

If you have further questions about the software, need an offer or would like to learn more about our additional services, please contact us. Our consultants will be happy to answer any questions you may have.

+44 1223 850 942 or E-Mail

FAQ: Your frequently asked questions and our answers

Fill in the form on this page and we will then send you an email with all the information you need (download link, video tutorials and documentation). After the download, we will send you some more information, documents and links that will help you trial the software.

  • PCF = Piping Component File.
  • A PCF file is generated by piping design systems from 3D pipework models.
  • The PCF file fully describes the 3D pipework and is a standard file format.
  • M4 ISO generates a fully dimensioned piping isometric drawing from the PCF file, together with a parts list.

Simply contact our consultants. Use the contact form or simply call us: +44 1223 850 942

Software maintenance includes technical support and software updates, including the latest versions. You also receive access to our online customer portal where you can request technical support and download the software and updates.
