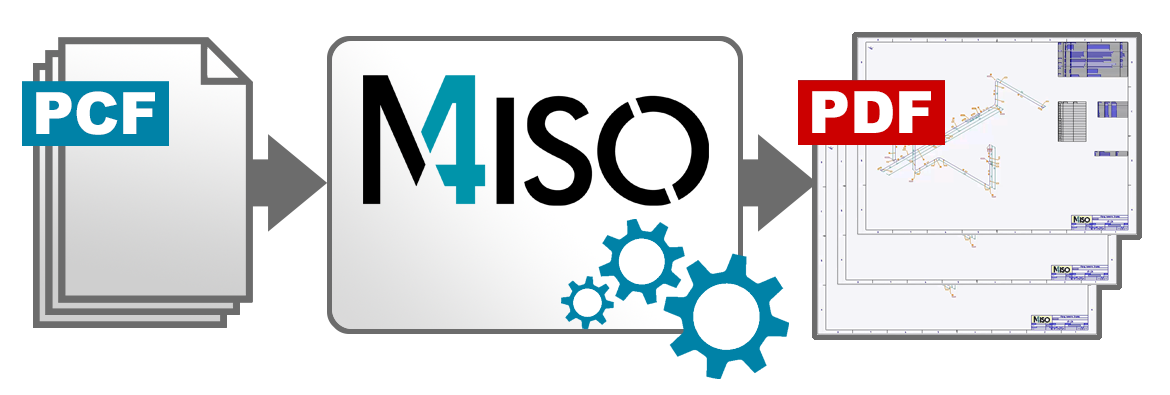

M4 ISO enables you to open PCF files and convert them to unscaled piping isometric drawings. You can either use M4 ISO standalone on your computer, or you can integrate M4 ISO into your processes to fully automate the generation of piping isometrics from PCF files.

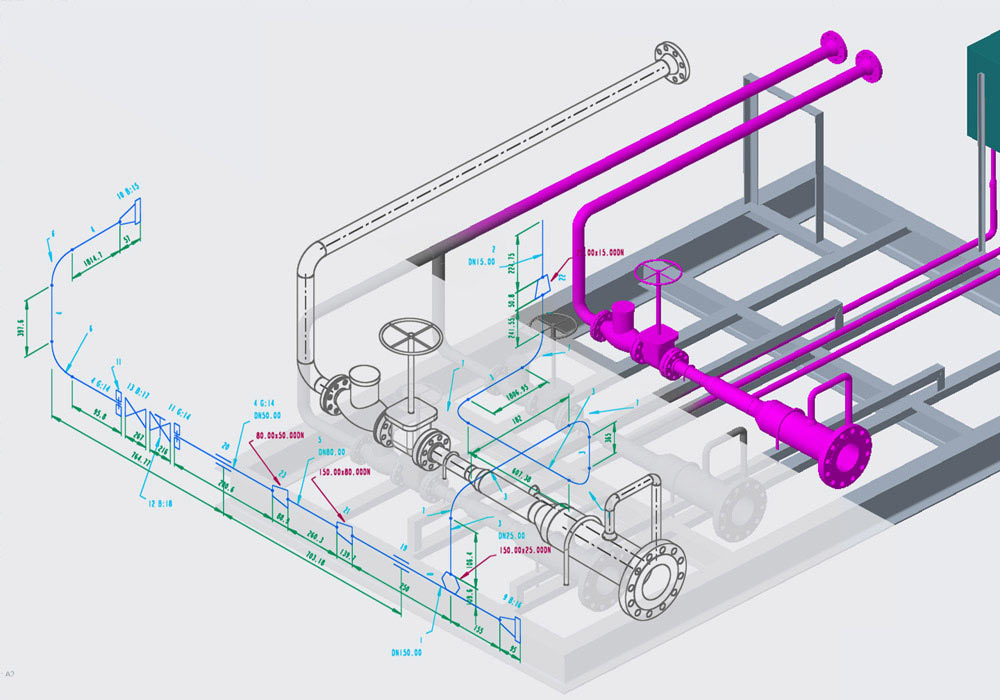

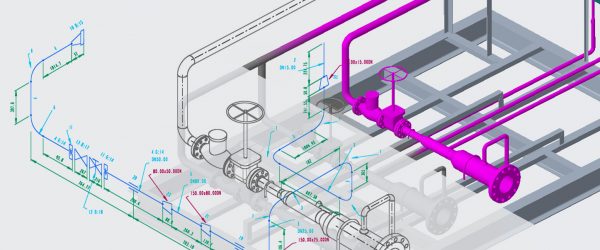

M4 ISO converts your PCF files into production-ready piping isometric drawings in just a few seconds. The information contained in each PCF file is displayed as a fully dimensioned and annotated isometric view of the pipework. In addition, parts lists, cut-length lists, bend tables and more, are automatically generated and displayed.

Isometrie für PTC Creo Piping - M4 ISO

Test the PCF Conversion you can achieve with M4 ISO

PCF test conversions are currently performed exclusively by CAD Schroer. Simply send us up to three PCF files and we will convert them into piping isometric drawings for you using M4 ISO. You will receive your isometric drawings in PDF format in 2 to 3 working days.

M4 ISO PCF Prozess

This service is only available to companies. If we have any questions about your test conversion request, we will contact you using the details provided below.
